Enhanced Lithium Battery Series 增強型鋰電池

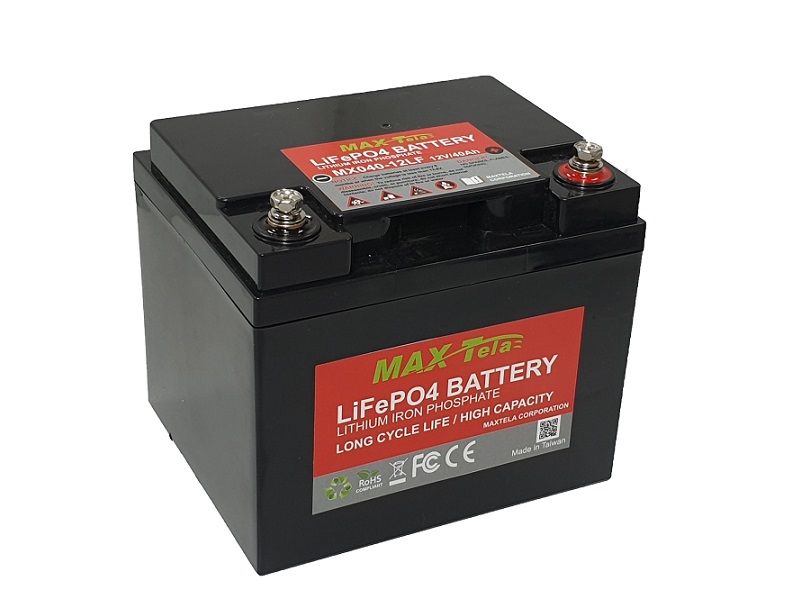

12V 40Ah Enhanced LFP Battery
Model name：MX040-12LF

Maxtela's Enhanced Lithium Iron Phosphate (LiFePO4) Battery Series with high power energy and a long life cycle, a specific design to fit its wide range capabilities relying on the built-in BMS. Enhanced Lithium Battery Series offers excellent performance and leverages with intelligent technology, to last the protection throughout the whole use.  Suitable for use in AGV, Storage energy, Telecom, Mobile motors applications, and much more.  (Customized design is also available when you need it.)

Features：

• Battery Management System (BMS) precisely controls the data of the battery to provide reliableperformance and battery life.
• Compact and lightweight design reduces 40%~50% of the weight comparing to lead-acid batteries.
• Higher battery capacity lasts the usage time for industry applications much more than ever.
• Significant discharge rate delivers times of power comparing to lead-acid batteries.
• Allow the faster charge, lower self-discharge rate
• Much longer cycle life than lead-acid batteries
• Compatible battery case with the present application space.

Specification：

Nominal Voltage基本電壓: 12.8V
Rated Capacity額定容量: 40Ah
Stored Capacity儲存容量: 512Wh
Cell Type電芯型態: LiFePO4 (磷酸鋰鐵)
Cell Voltage電芯電壓: 3.2V
Charge Voltage充電電壓: 14.6V max
Recommended Discharge
Cut-off Voltage放電截止電壓: 10.8V

PCM: YES

Charge Mode充電模式自放電率: CC/ CV
Self Discharge Rate充電溫度: ≤3% /month
Charge Temperature充電溫度: 0°C~ 45°C (32°F~113°F)
Discharge Temperature放電溫度: -20°C ~ 60°C (-4°F~140°F)
Discharge Humidity放電濕度: RH ≤ 85%
Storage Temperature儲存溫度: -10°C ~ 40°C (14°F~104°F)
Dimension (Lx Wx H)尺寸: 197x165x170 mm 7.8”x 6.5”x 6.7”

Weight重量: 5.4Kg (11.9lbs)

Terminal Type: T11 (8mm STUD)

BCI Group:
